China New Brand Sunway Total Station ATS120A Reflectorless Total Station

  • China New Brand Sunway Total Station ATS120A Reflectorless Total Station
  • China New Brand Sunway Total Station ATS120A Reflectorless Total Station
  • China New Brand Sunway Total Station ATS120A Reflectorless Total Station
  • China New Brand Sunway Total Station ATS120A Reflectorless Total Station
  • China New Brand Sunway Total Station ATS120A Reflectorless Total Station
  • China New Brand Sunway Total Station ATS120A Reflectorless Total Station
Model No.︰ATS120M
Brand Name︰SUNWAY
Country of Origin︰China
Unit Price︰-
Minimum Order︰1 pc
Share on:

 Total 55 Related Items
Prev3536373839Next

Product Description

China New Brand Sunway Total Station ATS120A Reflectorless Total Station with Leica Type Operating Software for Survey

Product Application

Widely used in Civil, Topographic, Tunnel and Water engineering jobs, and are well received for its

excellent and stable performance.



Technical Parameters

Function Unit Serial
ATS-120A
Telescope Imaging Erect
Magnification × 30
Field of view 1゜20′
Min.target distance m 1.5
Effective aperture mm 40/50(EDM)
Angle measurement (Hz, V) 2C index error (″) 1.4
Angle i index error (″) 2.0
Angle measurement method Absolute encoder
Minimum reading (″) 1
Distance measurement (IR) Range Single prism km 4
Triple prism km 5
No- prism1 m 400/600/800
Time Repeated s 0.8
Tracking s 0.4
Minimum display mm 0.1
Accuracy Prism mm ±(2+2×10-6D)
No- prism ±(3+2×10-6D)
Tilt compensator Compensation method Dual-axis type
Compensation range (′) ±3
Communication Port RS232C
U disk interface Yes
Bluetooth Yes
Temperature and pressure sensor Yes
SD card Yes
Display Screen Both sides(192*96, Black and white screen)
Illumination Support
Laser Plumb Laser (optional) Laser Plumb Wavelength 635nm Maximum output power (adjustable): not less than 0.4 m W, not more than 1.0 mW
Level Tubular level (″)/2 mm 30
Round level (′)/2 mm 8
Built-in application Support
Battery supply Type Rechargeable High-energy lithium battery
Voltage V 7.4
Power W < 2.2
Battery capacity mAh 3000
Working duration Angle h 18
Dist+Angle h 8 (At + 20 ° C, constant measuring mode)

1: Refers to good weather conditions (visibility is not less than 30km), the goal of KODAK CAT

NO.E1527795 (90% of reflecting surface)

Package Engineering case+ Carton Size(W*L*H) 53cm*35cm*44cm
N.W 10.5kg
G.W 11kg

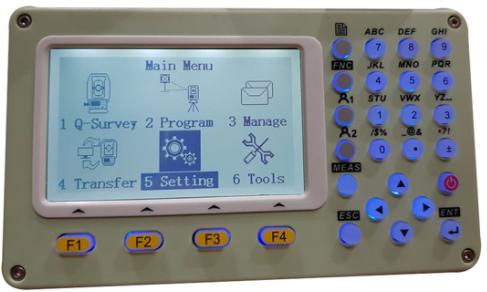

1. User-friendly software,welcome by worldwide customers.



China New Brand Sunway Total Station ATS120A Reflectorless Total Station with Leica Type Operating Software for Survey

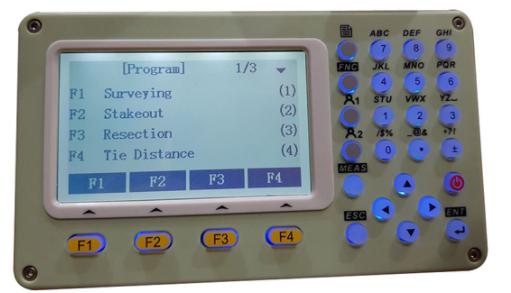

2.Rich surveying functions: STAKEOUT, RESECTION,TIE DISTANCE, AREA&VOLUME, REMOTE HEIGHT, COGO,ROAD,REF ARC/LINE/SURFACE, etc.



China New Brand Sunway Total Station ATS120A Reflectorless Total Station with Leica Type Operating Software for Survey





3.Variable communication methods: Bluetooth, RS 232, USB, SD card(with extension up to 32GB)

4. Variable ouput data format: CSV, DAT, DXF,GSI, GT7, HTF, TXT
5.Powerful and Fast EDM Capability
6.Stable Dual-axis Compensation
7. Fast procceding based on STM32
8.Dust and Water Protection
9.Intelligent Calibration Software



Product Application

Widely used in Civil, Topographic, Tunnel and Water engineering jobs, and are well received for its

excellent and stable performance.



Technical Parameters

Function Unit Serial
ATS-120A
Telescope Imaging Erect
Magnification × 30
Field of view 1゜20′
Min.target distance m 1.5
Effective aperture mm 40/50(EDM)
Angle measurement (Hz, V) 2C index error (″) 1.4
Angle i index error (″) 2.0
Angle measurement method Absolute encoder
Minimum reading (″) 1
Distance measurement (IR) Range Single prism km 4
Triple prism km 5
No- prism1 m 400/600/800
Time Repeated s 0.8
Tracking s 0.4
Minimum display mm 0.1
Accuracy Prism mm ±(2+2×10-6D)
No- prism ±(3+2×10-6D)
Tilt compensator Compensation method Dual-axis type
Compensation range (′) ±3
Communication Port RS232C
U disk interface Yes
Bluetooth Yes
Temperature and pressure sensor Yes
SD card Yes
Display Screen Both sides(192*96, Black and white screen)
Illumination Support
Laser Plumb Laser (optional) Laser Plumb Wavelength 635nm Maximum output power (adjustable): not less than 0.4 m W, not more than 1.0 mW
Level Tubular level (″)/2 mm 30
Round level (′)/2 mm 8
Built-in application Support
Battery supply Type Rechargeable High-energy lithium battery
Voltage V 7.4
Power W < 2.2
Battery capacity mAh 3000
Working duration Angle h 18
Dist+Angle h 8 (At + 20 ° C, constant measuring mode)

1: Refers to good weather conditions (visibility is not less than 30km), the goal of KODAK CAT

NO.E1527795 (90% of reflecting surface)

Package Engineering case+ Carton Size(W*L*H) 53cm*35cm*44cm
N.W 10.5kg
G.W 11kg





Payment Terms︰T/T, Western Union, Money Gram
